| Kinds of Membrane Switch |
| |
|
|

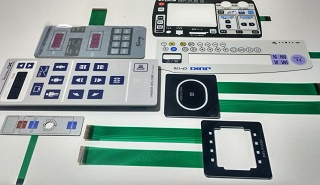

Flat Type |

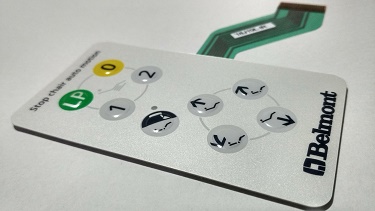

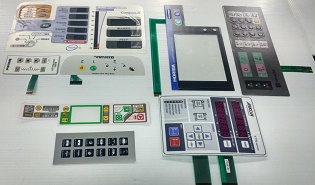

Emboss Type |

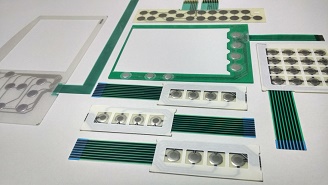

Metal Dome Type |
|
  |
 |
| |
|
|

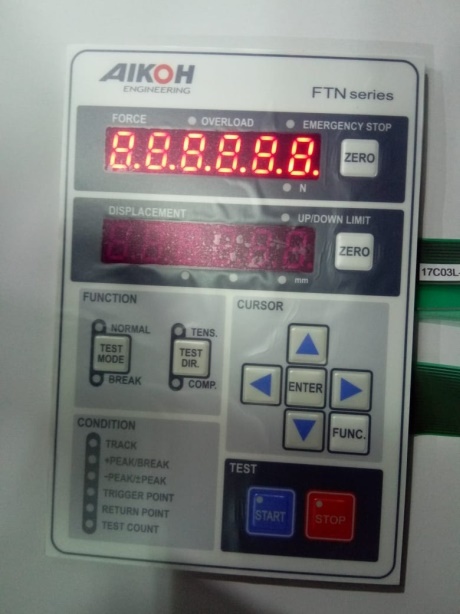

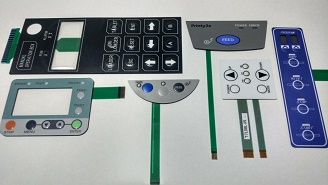

LED Type |
7 Segmen Type |

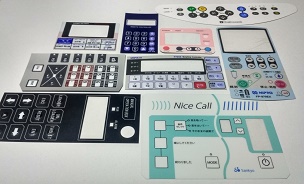

Color Printing |
|
|
|
|
|
| |
|
|

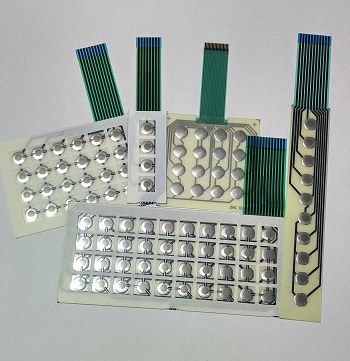

Standard Type |
|
|
| |
|
|
| Standard membrane switch |
DT Series |
| DT series standard membrane switch |
| * It is high standard based switch in general purpose. |
| * We offer secure key operation with individual development stailess steel dome adoption. |
|
Product number |
The number of keys |
Paste |
Key section size |
Table size |
The number of table pins |
Table pitch |
Key pitch |
DT-2C |
2 (1x2) |
Reverse side |
W34xD51 mm |
W15XD70 mm |
5 pins |
2.54 mm |
17 mm |
DT-4 |
4 (1x4) |
Chart reverse side |
W34XD85 mm |
W22.8XD70 mm |
8 pins |
2.54 mm |
17 mm |
DT-10C |
10 (1x10) |
Reverse side |
W34XD187 mm |
W30.4XD70 mm |
11 pins |
2.54 mm |
17 mm |
DT-12 |
12 (3x4) |
Chart reverse side |
W68XD85 mm |
W22.8XD70 mm |
8 pins |
2.54 mm |
17 mm |
DT-16 |
16(4x4) |
Chart reverse side |
W85XD85 mm |
W22.8XD70 mm |
8 pins |
2.54 mm |
17 mm |
DT-24 |
24(4x6) |
Chart reverse side |
W85XD119 mm |
W22.8XD70 mm |
10 pins |
2.54 mm |
17 mm |
DT-40 |
40 (4x210) |
Chart reverse side |
W85XD187 mm |
W35.4XD70 mm |
13 pins |
2.54 mm |
17 mm |
|
| |
|
|
| Standard membrane switch |
DTK Series |
| DTK series trial manufacture keyboard kit |
| *It is the kit for trial manufacture which sets the surface sheet simple |
| ssimple design sheet and the connector for baseplate mounting in the standard membrane switch. simple assy. |
|
Product number |
The number of keys |
Switch |
Overlay |
Color pad |
Connector |
Panel edge |
DTK - 4 |
4 keys |
1 |
1 |
White 8 |
1 |
1 |
DTK - 12 |
12 keys |
1 |
1 |
White 16 Red 8 |
1 |
1 |
DTK - 16 |
16 keys |
1 |
1 |
White 16 Red 8 |
1 |
1 |
DTK - 24 |
24 keys |
1 |
1 |
White 16 Red 16 |
1 |
1 |
DTK -40 |
40 keys |
1 |
1 |
White 32 Red 16 |
1 |
1 |
Surface make-up seat being to be the attachment, the experimental model strange feeling is not of course even in the mass production adoption |
|
| |
|
|
|
|
|
|
|
|
|
| |
|
|
| |
